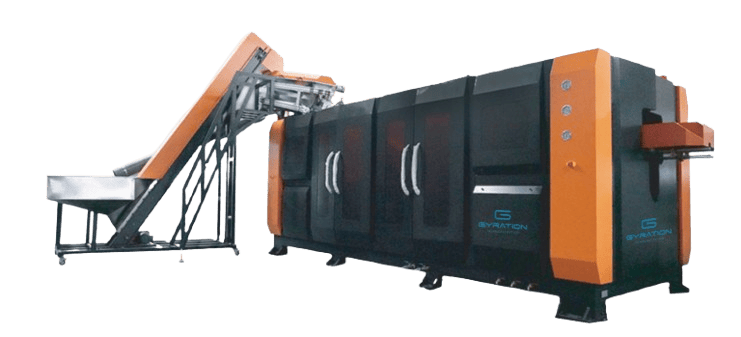

Our Family automatic PET Blowing Machines offer high-speed bottle production ranging from 9,000 to 26,000 bottles per hour. Available in 4 to 12 cavity configuration, each machine is designed to meet the demands of modern beverage and packaging industries.
Equipped with advance heating systems, optimized air consumption, and energy-efficient, these machines ensure uniform bottle quality, low operational costs, and production. the compact design, fast mold changeovers, and user-friendly interface make these machines a smart and reliable choice for industrial-Scale operations.
Enquiry NowTechnical Specifications
| Model | GT-4C2 | GT-6C2 | GT-8C2 | GT-10C2 | GT-12C2 |
|---|---|---|---|---|---|
| Cavity | 4 | 5 | |||
| Theoretical Output | 9000-10000 BPH | 12000-15000 BPH | 16000-20000 BPH | 20000-24000 BPH | 24000-26000 BPH |
| Max Bottle Volume | 1 L | 1 L | 1 L | 1 L | 1 L |
| Bottle Mouth Dia. | 24-30 MM | 24-30 MM | 24-30 MM | 24-30 MM | 24-30 MM |
| Bottle Max Dia | 100 MM | 100 MM | 100 MM | 100 MM | 100 MM |
| Bottle Max Height | 330 MM | 330 MM | 330 MM | 330 MM | 330 MM |
| Light Tube Ouantity | 32PCS | 32PCS | 32PCS | 32PCS | 32PCS |
| Light Tube Power | 1.25 KW | 1.25 KW | 1.25 KW | 1.25 KW | 1.25 KW |
| Total Installed Power | 52KW | 68KW | 82KW | 98KW | 110KW |
| Actual Power Consumption | 30-60 KW | 30-60 KW | 30-60 KW | 30-60 KW | 30-60 KW |
| Work Air Pressure | 5-6 KG/CM2 | 5-6 KG/CM2 | 5-6 KG/CM2 | 5-6 KG/CM2 | 5-6 KG/CM2 |
| Low Pressure Air Consumption | 2-5-3 M3/MIN | 2-5-3 M3/MIN | 2-5-3 M3/MIN | 2-5-3 M3/MIN | 2-5-3 M3/MIN |
| Blow Bottle Pressure | 95-45 KG / CM2 | 95-45 KG / CM2 | 95-45 KG / CM2 | 95-45 KG / CM2 | 95-45 KG / CM2 |
| High Pressure Air Consumption | 5-6 M3 / MIN | 5-6 M3 / MIN | 5-6 M3 / MIN | 5-6 M3 / MIN | 5-6 M3 / MIN |
| Cooking Water Pressure | 3-5 KG / CM 2 | 3-5 KG / CM 2 | 3-5 KG / CM 2 | 3-5 KG / CM 2 | 3-5 KG / CM 2 |
| Chiller Water Temp Range | 10-12 0C | 10-12 0C | 10-12 0C | 10-12 0C | 10-12 0C |
| Machine Dimensions | 3600x1600x1900MM | 3600x1600x1900MM | 5800x1600x1900MM | 6820x1600x1900MM | 7500 KG |
| Machine Weight | 4300 KG | 4300 KG | 6800 KG | 9570x1600x1900MM | 11600 KG |
